LUMINAIRE LED TSL9 series linear fixture
Manufactures part number TSL9 46IN 50W 40K MVOLT OP WHT ONOFF50
Perfect for stairwell, hallway, garage or shop.
This is a 50 watt Linear Vandal Resistant Fixture with Occupancy Sensor
See below specs:
Overall length 48.45", width 9.40", height 3.46"
Some data from the manufactures web site:
Housing Die formed 18 gauge cold rolled zinc coated steel.
Finished with electrostatically applied polyester
Lens Extruded UV stabilized polycarbonate with integral prisms.
Maximum wall thickness 0.160". Secured to housing with injection
molded end caps and 2 captive stainless steel TORX® head screws.
End Caps Injection molded UV stabilized polycarbonate with a minimum
wall thickness of 0.140". Secured to housing with 2 captive stainless
steel TORX® head screws per side. Provisions for surface conduit entry.

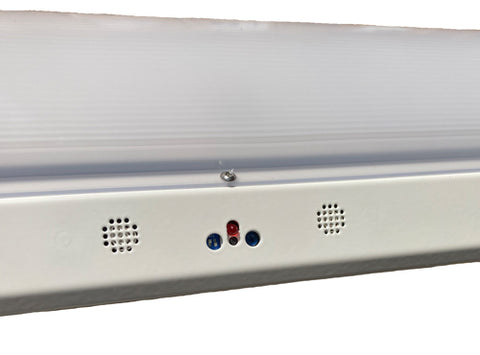

Sensor Ultrasonic zoneless activated sensor technology uses Doppler
Effect to monitor volumetric space.
Factory default of 15 minute time out. For ceiling heights above 20',
sensitivity of occupancy sensor may be reduced.
Drivers 0-10V integral driver.
LED Samsung LM561B+ series @ 4000K and 82 CRI wired in parallel-series.
L70 projected life of over 130,000 hours at 50ºC.
